LIVETAP Live sprinkler system modifications.
LIVETAP
Sprinkler modifications without the added hassle, cost and time of draining down.
Livetap is a major innovation for making modifications to sprinkler systems. No drain down is required, making it the simplest, fastest and most cost effective way to make modifications while complying with all fire sprinkler system codes.

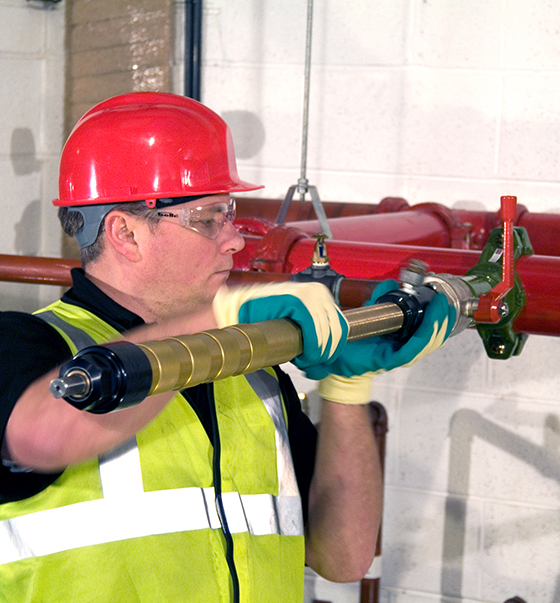

UNDER PRESSURE DRILLING
The Livetap under pressure drilling concept has been developed to address the issues that arise when planning and implementing modifications and additions to existing sprinkler systems, and modifying existing sprinkler head locations.
Livetap allows qualified engineers to undertake work on live systems, without the need to drain down. Fire protection is maintained at all times during the sprinkler works. Consequently there is no need to advise fire authorities or close the building while work is in progress, minimising business disruption.
Using Livetap ensures no dirty water discharge, no difficult backfilling and no complex downtime arrangements, with the use of Livetap an engineer could add or move a sprinkler head in under two hours.
Product Information
System Benefits
NO DRAIN DOWN
There is no need to drain down the sprinkler system to make modifications with Livetap, all works can be carried out live.
SPRINKLERS REMAIN LIVE
As there is no need to drain down sprinkler protection remains live so, there is no need to notify fire authorities or insurers of any planned works.
NO ISOLATING ALARMS
There’s no need to isolate alarms, fire pumps and with no waiting around for systems to drain or recharge, sprinkler works can be done in a fraction of the time.
BUILDING REMAINS OPEN
As sprinkler protection is maintained during works, there is no need to shut down parts of the building, phase works or put additional security measures in place.
VERSATILE FITTINGS
Livetap comes with a wide range of fittings designed to make modifications and small works easier.
APPROVED
The Livetap under pressure drilling system is fully approved and meets all relevant fire code standards.
Under Pressure Drilling Training
Livetap Applications

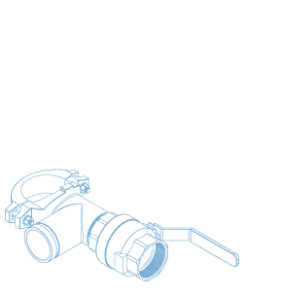

No Drain T
Specially designed mechanical tee engineered to provide a branch tee outlet without an in-line valve. Allows the ‘live’ installation of additional sprinklers. Available in a wide range of pipe sizes.

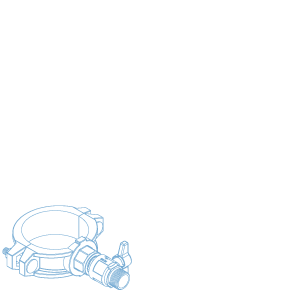

Kwik Drain
Using Livetap technology allows the user to quickly install a drain connector in the most beneficial location on the system without draining down.

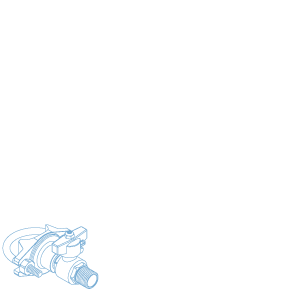

Kwik Vent
Kwik Vent is used to vent troublesome trapped air within sprinkler pipework. This connection can also be used in conjunction with freezing equipment to modify/alter small pipework arrangements.

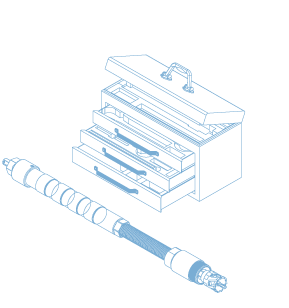

Drill & Toolkit
The Livetap tool boxes incorporate all the drilling equipment and accessories needed to undertake live sprinkler modifications.
Approvals
The Livetap system has been developed to comply with all fire sprinkler system code standards. Livetap products and fittings have been tested and approved by LPCB, FM, UL and VdS. Only certified installers can use the Livetap system, information on training and becoming a certified can be found on our website. Only approved Livetap fittings and components must be used in conjunction with the Livetap under pressure drilling system.
We are here to help
Want to know more about how you can simplify your testing routines?
If you want to contact a member of our team, please fill out the form or send an email to khlim@ecozonesingapore.com
